Overview

CAE； Computer Aided Engineering

For example ...
Prior to manufacturing actual products, computer simulations are done to verify whether the designed equipment specifications clear customer requirements or not.

Benefits of CAE

• Shorter development/design periods
• Lower costs for prototyping/testing
• Better design quality
• Visualization of physical phenomena

We use CAE in more than 100 projects a year. It is helping us to build the best quality into products and please customers.

Analytical fields we handle

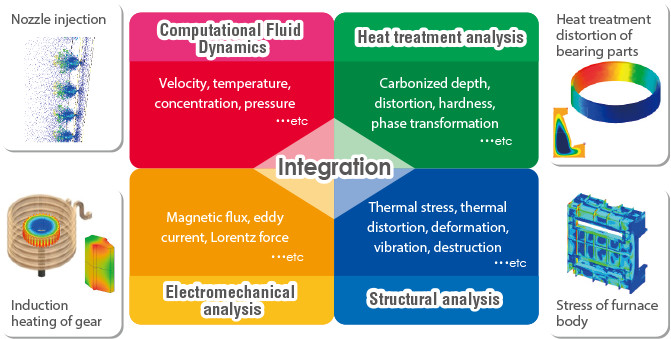

JTEKT Thermo Systems Corporation is versed in thermal fluid analysis, structural analysis, heat treatment analysis and induction heating analysis, but also conducts cooperative/coupled analyses that combine these fields. The ultimate objective is to simulate the entire heat treatment process from equipment configuration to estimating the heat treatment quality of products processed by that equipment.

Moreover, tests are conducted by the same personnel placed in charge of analyses in order that we can corroborate analytical results.
Ex.: Measuring flowrates, temperatures, waveforms, distortion, etc.

Examples by product category

	Thermal Fluid	Structure	Heat Treatment	Induction Heating
Industrial Heat Treatment	Rotary Drum Type Continuous Carburizing Furnace	Mesh Belt Type Sintering Furnace	Smart FLEC Carburizing Furnace	Induction hardening, Tempering furnace
	Flow inside of a furnace	Muffle thermal stress	Treated product, Case hardness	Treated product temperature
Semi- conductor	Horizontal Furnace	Horizontal Furnace	* Results from structural analyses are exaggerated so that deformations are easy to spot. The simulated deformations can differ from actual deformations, therefore caution is advised. * This is but a sample of what we have done. We have many more results from product development, etc.
	Treated product temperature	Deformation in supporting board
FPD and Film Manufacturing	Clean Oven, Single Substrate Transfer Type	Clean Oven, Single Substrate Transfer Type
	Flow inside of a chamber	Thermal deformation in a furnace bed
Electronic Component Manufacturing	Mesh Belt Type Sintering Furnace	Ceramic Conveyor Type Continuous Furnace
	Gas concentration inside a furnace	Stress in a ceramic chain
Equipment for development and prototyping experiments	Vacuum Purge Type Box Furnace	High-Temperature Clean Oven
	Muffle temperature	Thermal stress in chamber sheet metal
